ADS Racing Shocks

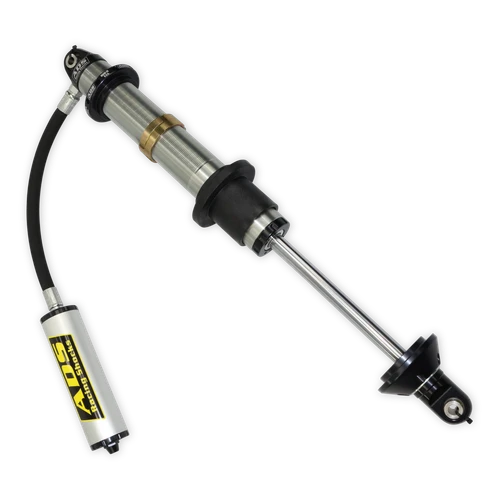

ADS Race 3.0" Reservoir Coilover - Straight 300-COR16-000
$1,649.95
Product description
Built for demanding off-road and desert-racing use, this 3.0-inch remote-reservoir coilover is designed to increase fluid capacity, manage heat and deliver durable, serviceable performance.
- Large-bore 3.0-inch steel shock body with clear Cerakote finish
- Black-anodized billet aluminum top and bottom caps
- Hard-chrome-plated steel shaft

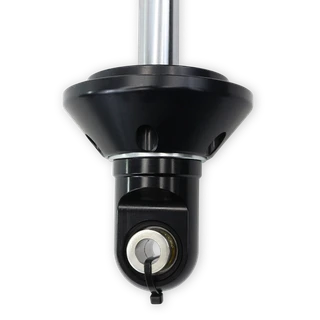

- Machined shock-eye rod ends with high-strength spherical bearings
- Temperature-stable synthetic hydraulic fluid

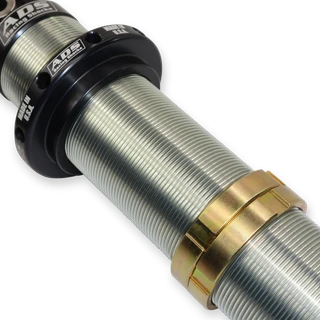

- Extended threaded body for a broad dual-rate spring adjustment range
- Fully rebuildable
- Made in the USA
Specifications
| SKU | 300-COR16-000 |
|---|---|
| Shock body diameter | 3.0 in. |
| Stroke | 16.04 in. |
| Collapsed length | 27.33 in. |
| Extended length | 43.37 in. |
| Mounting width and bolt size | 1.5 in. x 0.500 in. |
| Adjustable reservoir | No |
| Quantity | Sold individually |
Product information source: ADS Suspension
